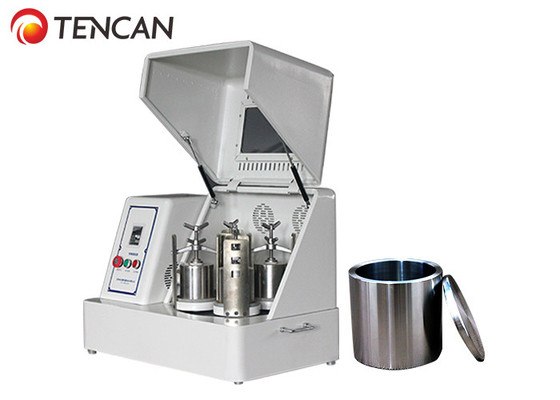

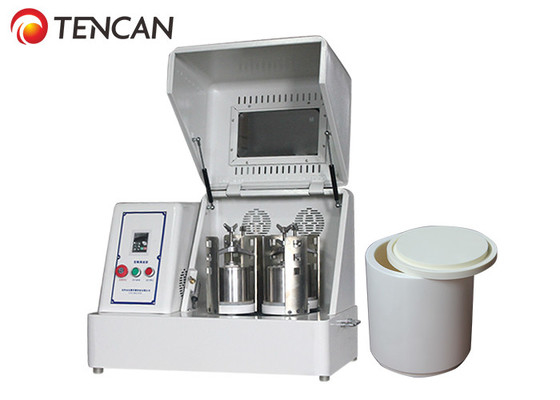

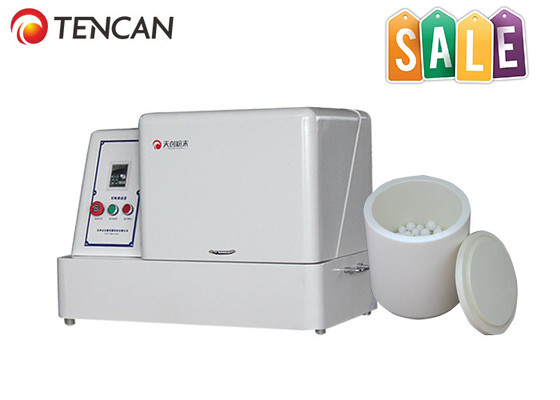

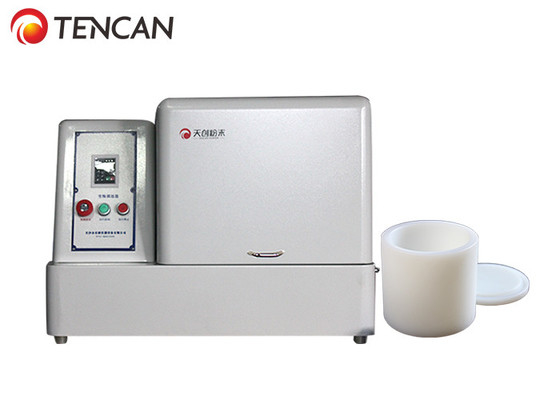

China Tencan XQM-12 Nano Powder Making Wet & Dry Grinding Laboratory Ball Mill
Produktdetails:
| Herkunftsort: | Hunan, China |
| Markenname: | TENCAN |
| Zertifizierung: | CE ISO |
| Modellnummer: | XQM-12 |
Zahlung und Versand AGB:
| Min Bestellmenge: | Ein Satz |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | KARTON ODER SPERRHOLZKOFFER |
| Lieferzeit: | 3-7 Arbeitstage nach Erhalt der vollständigen Zahlung |
| Zahlungsbedingungen: | T/T, Western Union, L/C, MoneyGram, |
| Versorgungsmaterial-Fähigkeit: | 200 Stück pro Monat |
|
Detailinformationen |
|||
| Produktbezeichnung: | Laborquadratische planetarische Ball-Mühle | Modell Nr.: | XQM-12 |
|---|---|---|---|
| Spannung: | 220V-50Hz oder 110V-60Hz | Macht: | 1.5 kW |
| Drehgeschwindigkeit: | 70-580 U/min | Geschwindigkeitsregelung: | Frequenzsteuerung |
| Gesamtvolumen: | 12 L | Maximale Kapazität: | 4L |
| Hervorheben: | Wet Grinding Laboratory Ball Mill,Nano Powder Making Laboratory Ball Mill,Dry Grinding Laboratory Ball Mill |
||
Produkt-Beschreibung
China Tencan XQM-12 Nano Powder Making Wet & Dry Grinding Laboratory Ball Mill
Overview
The TENCAN 12L Square-Type Planetary Ball Mill is a high-performance grinding system engineered for nano-powder production, fine milling, and material mixing in research and small-scale industrial applications. Featuring four 2500ml grinding jars, this mill delivers large-capacity, multi-sample processing while maintaining exceptional precision and efficiency. Ideal for R&D laboratories, universities, and industrial testing facilities, this versatile mill supports dry, wet, and vacuum grinding operations for a diverse range of materials.
Working Principle
The four-jar planetary motion creates high-speed impact grinding for ultrafine particle reduction. As the turntable rotates, each jar spins independently at high velocity, generating powerful collisions between grinding media and materials. Both dry and wet grinding methods are supported, with output fineness reaching down to 0.1μm (nano-scale). The square-type design enhances stability and ensures grinding uniformity across all samples.
Applications
✔ Materials Science – Nano-powders, ceramics, alloys, composite materials
✔ Battery & Energy – Li-ion cathode/anode materials (LFP, NMC), solid-state electrolytes
✔ Mining & Metallurgy – Ore refinement, metal powder processing
✔ Chemicals & Pharmaceuticals – Catalyst synthesis, drug formulation
✔ Environmental & Agriculture – Soil analysis, bio-waste processing
✔ Electronics – Ferrites, varistors, dielectric ceramics
Key Features
✅ High-Capacity Grinding – 4x 2500ml jars enabling large-batch processing
✅ Ultra-Fine Results – Achievable particle size down to 0.1μm (nano-scale)
✅ Multi-Functional – Supports dry, wet, and vacuum grinding operations
✅ Programmable Control – Adjustable speed settings, timed runs, auto-reverse function
✅ Stable & Safe – Low center of gravity design, gear-driven precision, overload protection
✅ Low Noise & Compact – Benchtop-friendly for laboratory environments
✅ Safety Lock – Emergency stop functionality if cover is opened during operation
Technical Specifications
Maximum Jar Capacity: 4x 2500ml
Grinding Methods: Dry / Wet / Vacuum
Minimum Particle Size: 0.1μm (100nm)
Jar Materials: Stainless Steel, Nylon, Zirconia, PTFE, Agate
Control System: Frequency converter with speed adjustment
Why Choose TENCAN 12L Planetary Ball Mill?
High Efficiency: Processes multiple samples simultaneously with uniform results. Wide Compatibility: Suitable for brittle, fibrous, and hard materials processing. Precision & Repeatability: Ensures consistent grinding performance for R&D and quality control.
Designed for advanced material research, battery development, and industrial powder processing, the TENCAN 12L Planetary Ball Mill delivers high-capacity, high-precision grinding solutions for the most demanding applications.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | < 10mm for soft material; < 3mm for hard material |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 hours |
| Materials of Jar | stainless steel,agate,nylon,corundum,zirconia, PU, PTFE etc |
Technical Parameters
| Main Parameters of 8L 110 / 220v Planetary Ball Mill - Square design | |||||
| Model | Power(kW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-12 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Squre type Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-1 | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2 | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4 | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-6 | 6.0L | 500ml, 1000ml, 1500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L |
| XQM-8 | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10 | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12 | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16 | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
