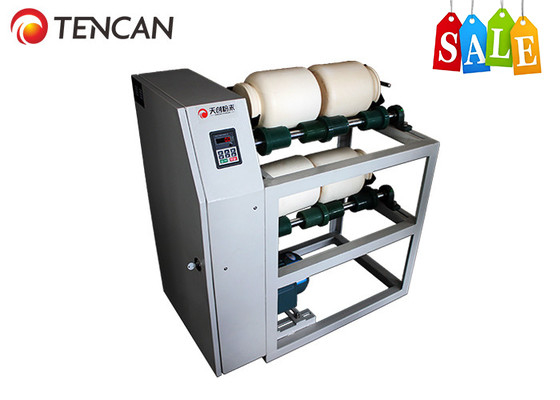

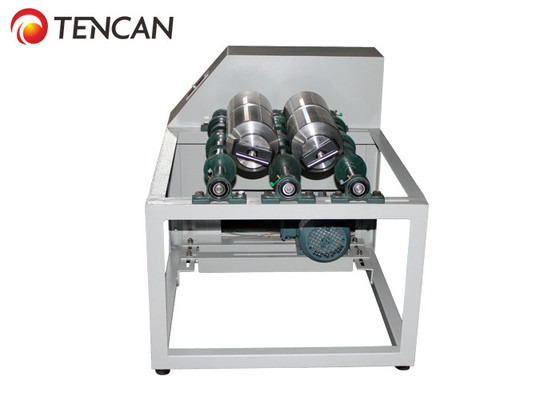

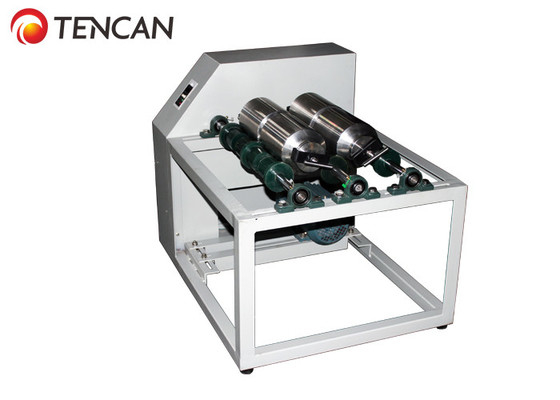

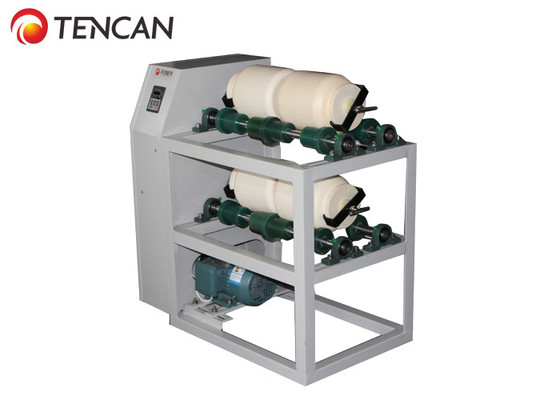

4×20L Multi-Position Horizontal Roll Jar Mill Capacity for Ultra-Fine Powder Grinding Mixing in Lab/Batch Production
Produktdetails:
| Herkunftsort: | Hunan, China |
| Markenname: | TENCAN |
| Zertifizierung: | CE ISO |
| Modellnummer: | GQM-4-20 |
Zahlung und Versand AGB:
| Min Bestellmenge: | Ein Satz |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Carton+Foam |
| Lieferzeit: | 3-7 Arbeitstage nach Erhalt der vollständigen Zahlung |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 200 Stück pro Monat |
|
Detailinformationen |
|||
| Produktbezeichnung: | Horizontale Rollenglas-Mühle | Modell Nr.: | GQM-4-20 |
|---|---|---|---|
| Spannung: | 380V-50HZ | Macht: | 1.5 kW |
| Drehgeschwindigkeit: | 40-340 U/min | Geschwindigkeitsregelung: | Frequenzsteuerung |
| Gesamtvolumen: | 80L | Maximale Kapazität: | 26.4L |
| Hervorheben: | Batch Production Horizontal Roll Jar Mill,4×20L Horizontal Roll Jar Mill,Multi-Position Horizontal Roll Jar Mill |
||
Produkt-Beschreibung
4×20L Multi-Position Horizontal Roll Jar Mill – High-Capacity Ultra-Fine Powder Grinding & Mixing for Lab/Batch Production
Overview:
The 4×20L Horizontal Roll Jar Mill is a high-capacity powder milling system designed for ultra-fine grinding and homogenization in laboratory, pilot-scale, and small-batch production. With four independent 20L grinding ports, it enables large-volume processing while maintaining precision and uniformity, making it ideal for R&D, material science, and industrial applications.
Key Advantages:
✔ High-Volume Processing – Four 20L jars allow simultaneous grinding of multiple materials or large batches.
✔ Ultra-Fine & Uniform Powder – Advanced inclined-flow grinding action ensures micron-level fineness with consistent particle distribution.
✔ Precision Control – Digital timing panel with pause & cumulative timing for flexible operation.
✔ Industrial-Grade Durability – Reinforced rubber rollers and optimized rotation speed for long-lasting performance.
✔ Wide Material Compatibility – Processes ceramics, metals, pharmaceuticals, nanomaterials, and more.
Working Principle:
The mill’s rotating jars lift grinding media and materials, which then cascade and collide, achieving efficient pulverization through impact, shear, and friction forces. The multi-position design maximizes throughput without compromising fineness.
Ideal For:
Advanced Material Research (Electronic, Magnetic, Nanocomposites)
Pharmaceutical & Bioengineering Powder Processing
Ceramic Glaze & Metal Alloy Production
Industrial Minerals & New Material Development
Boost productivity with high-capacity, precision grinding for labs and small-scale manufacturing!
Technical Parameters
| Technical Parameters of Rolling Jar Mill | |||||
| Category | Dimensions/WT (mm) |
Model No. | Motor Power(kw) |
Voltage | Rotate Speed (rpm) |
| 2 work station | 950*480*685mm/59kgs | GQM-2-5 | 0.37 | 220V-50Hz/60Hz | 50-410 |
| 1130*550*690mm/80kgs | GQM-2-15 | 1.1 | 220V-50Hz/60Hz | 40-365 | |
| 13506550*690mm/92kgs | GQM-2-20 | 1.5 | 220V-50Hz/60Hz | 40-365 | |
| 4 work station | 950*660*690mm/70kgs | GQM-4-5 Single Layer |
0.75 | 220V-50Hz/60Hz | 50-410 |
| 950*480*870mm/92kgs | GQM-4-5 Double Layers |
0.75 | 220V-50Hz/60Hz | 50-410 | |
| 1130*800*690mm/95kgs | GQM-4-15 | 1.5 | 220V-50Hz/60Hz | 40-365 | |
| 1350*820*690mm/122kgs | GQM-4-20 | 2.2 | 380V-50Hz/60Hz | 40-340 | |
| 8 work station | 950*660*960mm/106kgs | GQM-8-5 | 1.5 | 220V-50Hz/60Hz | 50-410 |
| 1130*800*690mm/152kgs | GQM-8-15 | 2.2 | 380V-50Hz/60Hz | 40-365 | |
Accessories of Roll Mill Jars & Balls
Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
