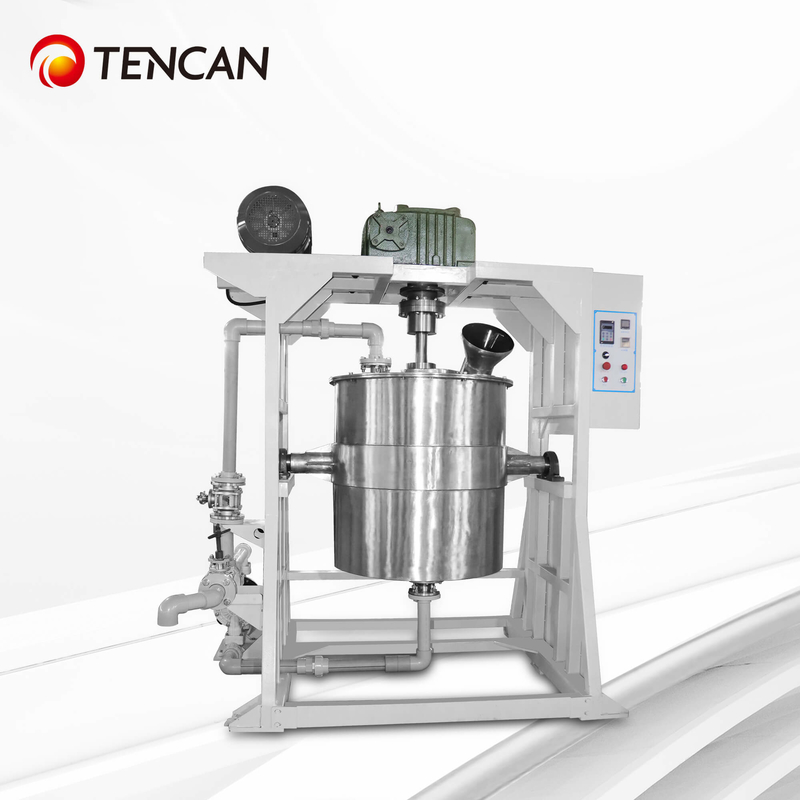

JM-100 100L Heavy Duty Chocolate Refiner Stirred Ball Mill with Temp Control Rotate Speed 60-110 rpm CE Certified
Produktdetails:
| Herkunftsort: | Hunan, China |
| Markenname: | TENCAN |
| Zertifizierung: | CE, ISO9001 |
| Modellnummer: | JM-100 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 SATZ |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Sperrholzgehäuse + Schaumstoff |
| Lieferzeit: | 7-10 Arbeitstage |
| Zahlungsbedingungen: | T/T, Western Union, MoneyGram |
| Versorgungsmaterial-Fähigkeit: | 100 Stück pro Monat |
|
Detailinformationen |
|||
| Produktname: | Fettschrift gerührte Ball-Mühle | Modell: | JM-100 |
|---|---|---|---|
| Spannung: | 3PH 380V-50Hz | Leistung: | 7.5 kW |
| Drehgeschwindigkeit: | 60-110 U/min | Geschwindigkeitsregelung: | Frequenzsteuerung |
| Gesamtvolumen: | 100 L | Maximale Kapazität: | 33L |
| Hervorheben: | Heavy Duty Stirred Ball Mill,100L Stirred Ball Mill,100L Chocolate Refiner Stirred Ball Mill |
||
Produkt-Beschreibung
100L Heavy Duty Chocolate Refiner | Stirred Ball Mill with Temp Control | CE Certified for Chocolate Factory
Overview

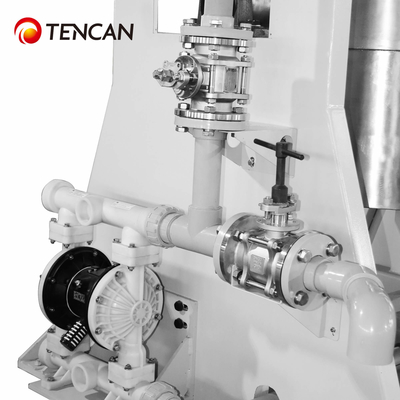

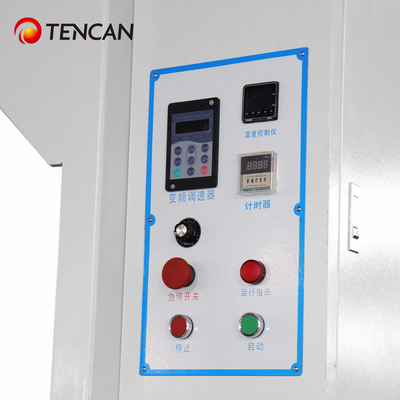

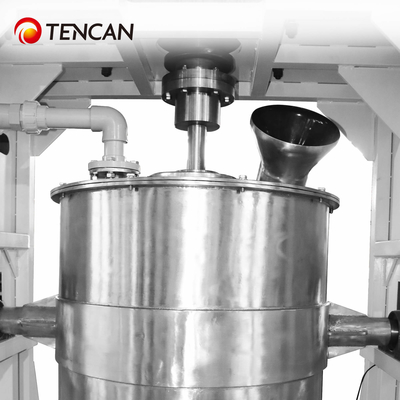

The Heavy Duty Stirred Ball Mill is engineered with a reinforced grinding chamber containing specialized milling media, a high-torque agitation system, and integrated process control components including material recirculation systems, precision temperature regulation units, programmable operation timers, and variable frequency drive controllers. This industrial-grade equipment delivers superior grinding efficiency and ultra-fine particle size reduction, meeting rigorous processing demands across multiple industries. Its robust construction, energy-saving operation, and competitive pricing make it particularly suitable for material research and production applications in academic institutions, industrial R&D centers, and manufacturing facilities.
Working Principle
Through high-speed rotation of the heavy-duty main shaft, the grinding media undergoes intensive multi-directional movement within the chamber, subjecting processed materials to powerful impact, shear, and compression forces that produce micron and sub-micron scale powders. The grinding efficiency is critically influenced by media specifications (size distribution, density) and optimal process parameters. Industrial applications demonstrate that larger media diameters (typically Ø3-15mm) combined with precisely controlled rotational speeds achieve optimal particle size reduction for various material characteristics.
Applications
This heavy-duty milling system finds extensive application in:
Advanced ceramics (zirconia composites, silicon carbide)
Electronic materials (ferrites, dielectric compounds)
Battery materials (electrode powders, solid electrolytes)
Specialty coatings (thermal spray powders, wear-resistant)
Mineral processing (ultra-fine talc, kaolin modification)
Pharmaceutical preparations (API micronization)
Food industry (chocolate refining when equipped with food-grade pumps and circulation systems)
Features
Technical Parameters
| Technical Parameters of Tencan HeavyType Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-30L | 60-310 | 30 | 10.50 | 380V/3.0KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤10mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-50L | 60-140 | 50 | 17.50 | 380V/4.0KW | ≤10mm | ≤1μm | ||
| JM-100L | 60-140 | 100 | 35.00 | 380V/7.50KW | ≤20mm | ≤1μm | ||
| JM-200L | 60-110 | 200 | 70.00 | 380V/11KW | ≤20mm | ≤1μm | ||
| JM-300L | 60-110 | 300 | 100.00 | 380V/15KW | ≤20mm | ≤1μm | ||
| JM-500L | 60-90 | 500 | 170.00 | 380V/18.50KW | ≤20mm | ≤1μm | ||
| JM-600L | 60-90 | 600 | 200.00 | 380V/22KW | ≤20mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
